Modelo |

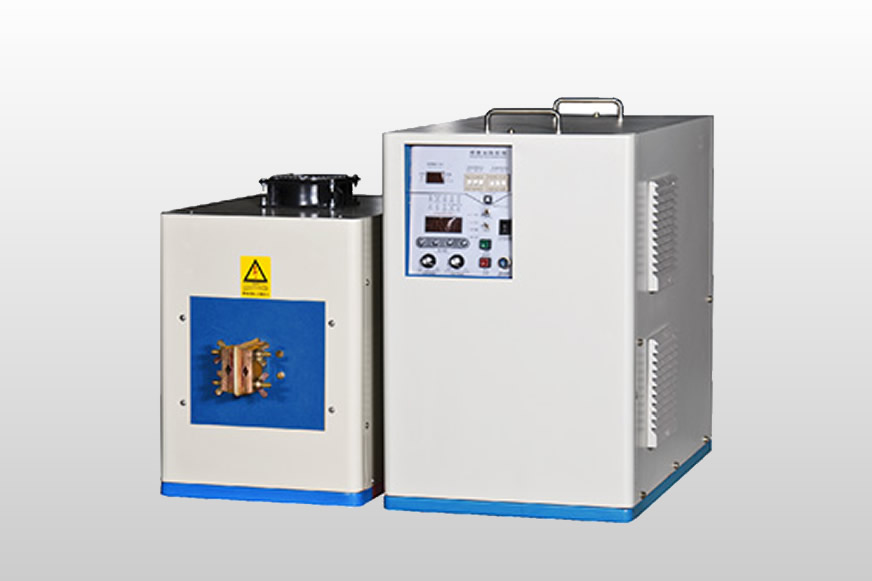

GYH-40AB (Three Phase) |
GYH-60AB (Three Phase) |
|
Work Power |
340v-430v |
340v-430v |
|
Maximum input current |
60A |
90A |
|
Output Power |
40kw |
60kw |
|
Fluctuating Frecuency |
50-200KHZ |
50-150KHZ |
|
The Flow rate of cooling water |
0.2Mpa ,6 L/Min |
0.2Mpa ,6 L/Min |
|
Water temperatura protection point |
50C |
50C |
|
Product Size |
Main: 560x350x550mm |
Main: 560x350x550mm |
Transformer: 510x300x450 |
Transformer: 510x300x450 | |
Net Weight |
Main: 50 kg. |
Main: 50 kg. |
Transformer: 28kg |
Transformer: 28kg |
